Parametric Performance Table |
||
S/N |
project |
parameter |
1 |
Power |
20kW/30kW |
2 |
Model |

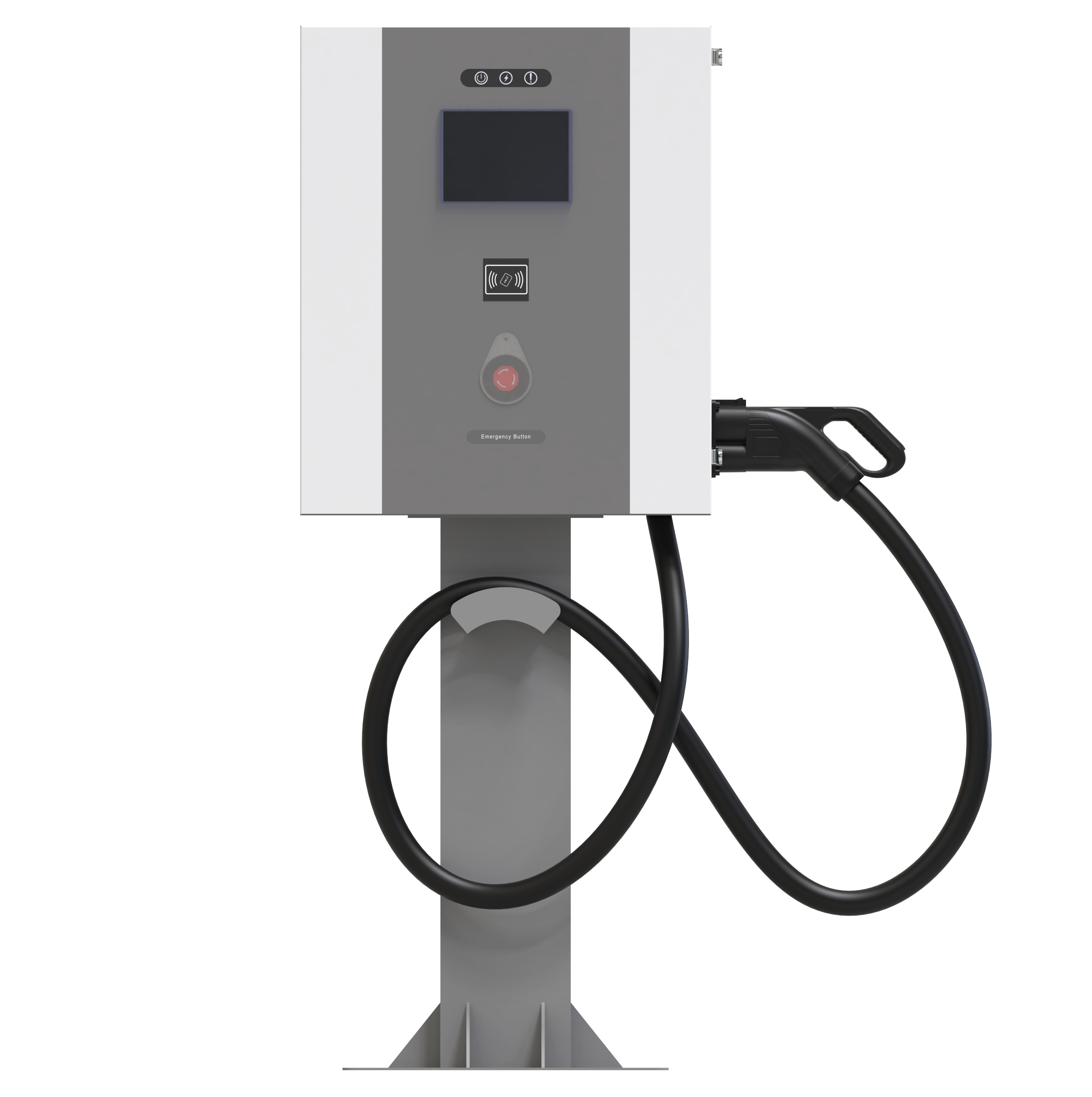

WYSK-1000V-20/30kW-Y07-11-1-DC（ Single gun） |
3 |
Connector |
GB/T/CCS1/CHaDeMO/CCS2 |
4 |
Max Power |
Yes |
5 |
Emergency Stop Button |
Yes |
6 |
Communication Protocol |
OCPP1.6J |
7 |
Input Voltage |
380V（-25% +25%）AC |
8 |
Frequency |
50Hz±10% |
9 |
Output Voltage |
50V - 1000VDC |
10 |
Protection Grade |
IP54 |
11 |
Power distribution |
Average power distribution |
12 |
Power factor |
≥0.99 |
13 |
Peak efficiency |
95.5% |
14 |
Overall efficiency |
94% |
15 |
auxiliary power supply |
12V |
16 |
humidity |
≤95% |
17 |
Soft startup time |
≤3.8S |
18 |
Output voltage error |
≤±0.5% |
19 |
Output current error |
≥30A ，≤±1%；<30AVoltage accuracy，≤±0.3A
|
20 |
Voltage accuracy |
≤0.5% |
21 |
Steady flow accuracy |
≤1% |
22 |
Voltage ripple |
≤1% |
23 |
Current sharing |
≤5% |
24 |
Load adjustment rate |
≤1% |
25 |
EMC |
GB/T 18265-2014：5.4 |
26 |
Starting mode |
Swipe card/small program scan code |
27 |
Insulation resistance |
≥10MΩ |
28 |
Withstand voltage |
AC2500V |
29 |
Display screen |
7" touch screen |
30 |
Installation mode |
Floor-wall hanging |
31 |
Operating temperature |
-35℃ - +55℃ |
32 |
Charging gun length |
3m/4m/5m |
33 |
Altitude |
≤2000m (Customization required above 2000m) |
34 |
Harmonic distortion |
≤5% |
